Description

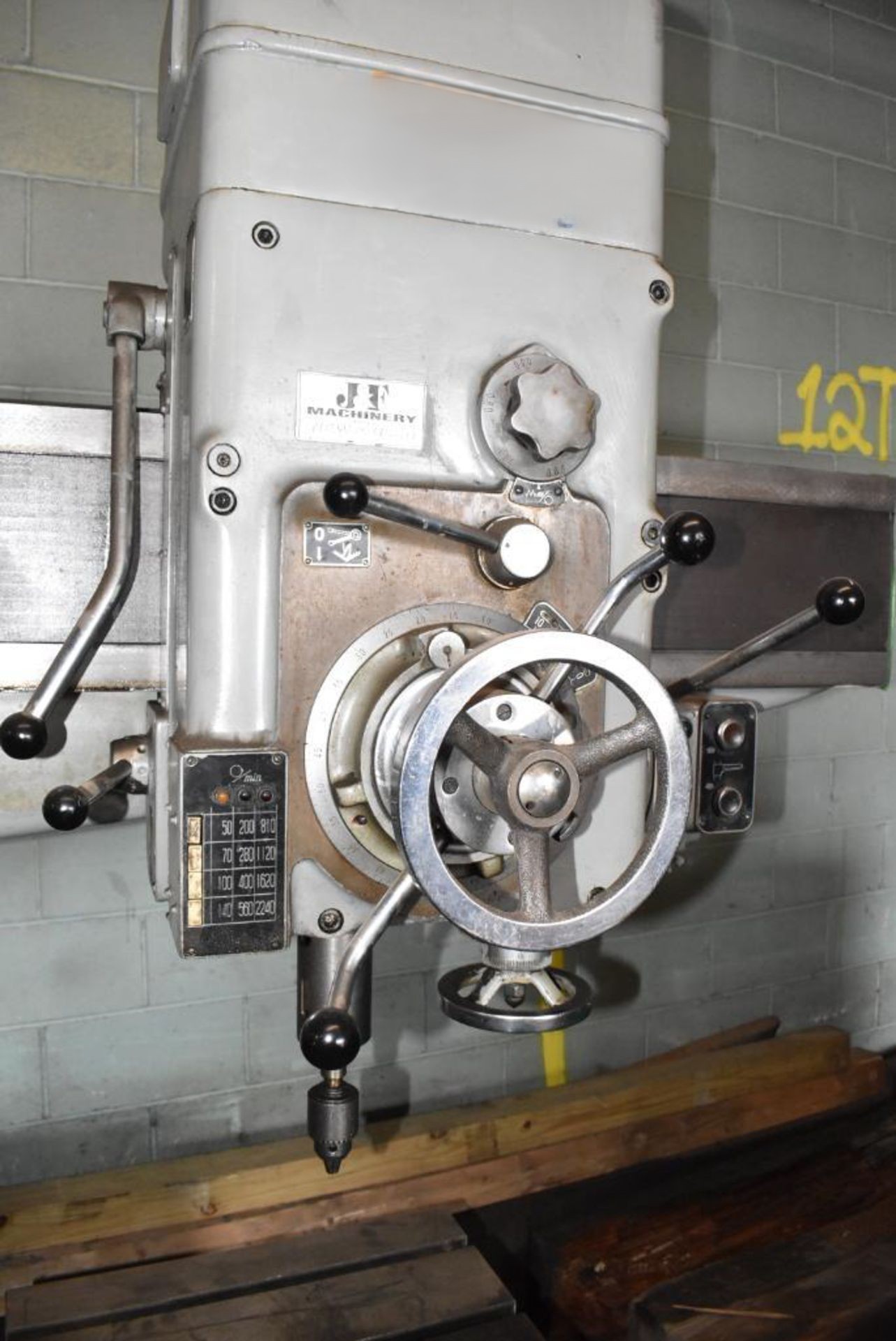

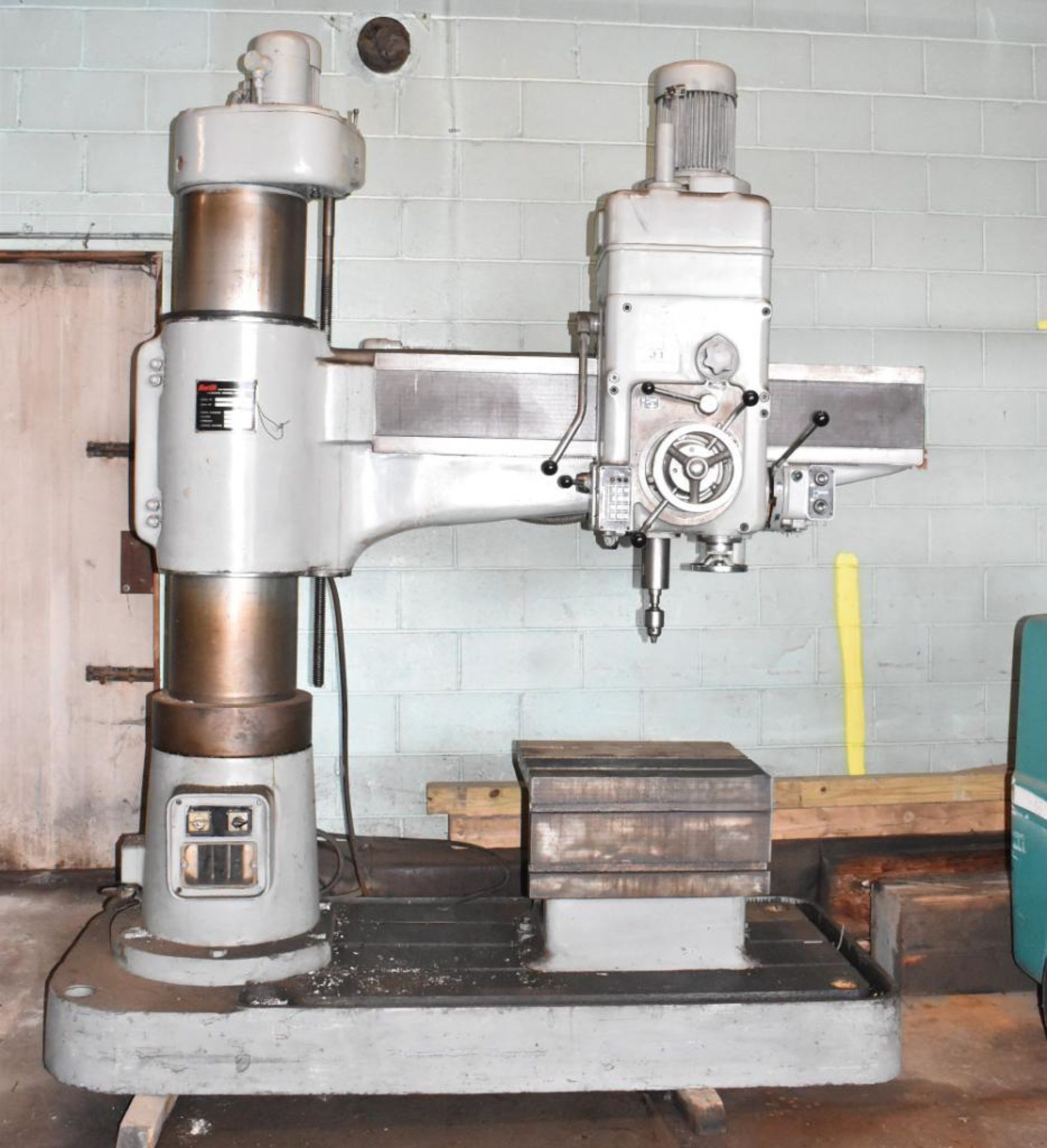

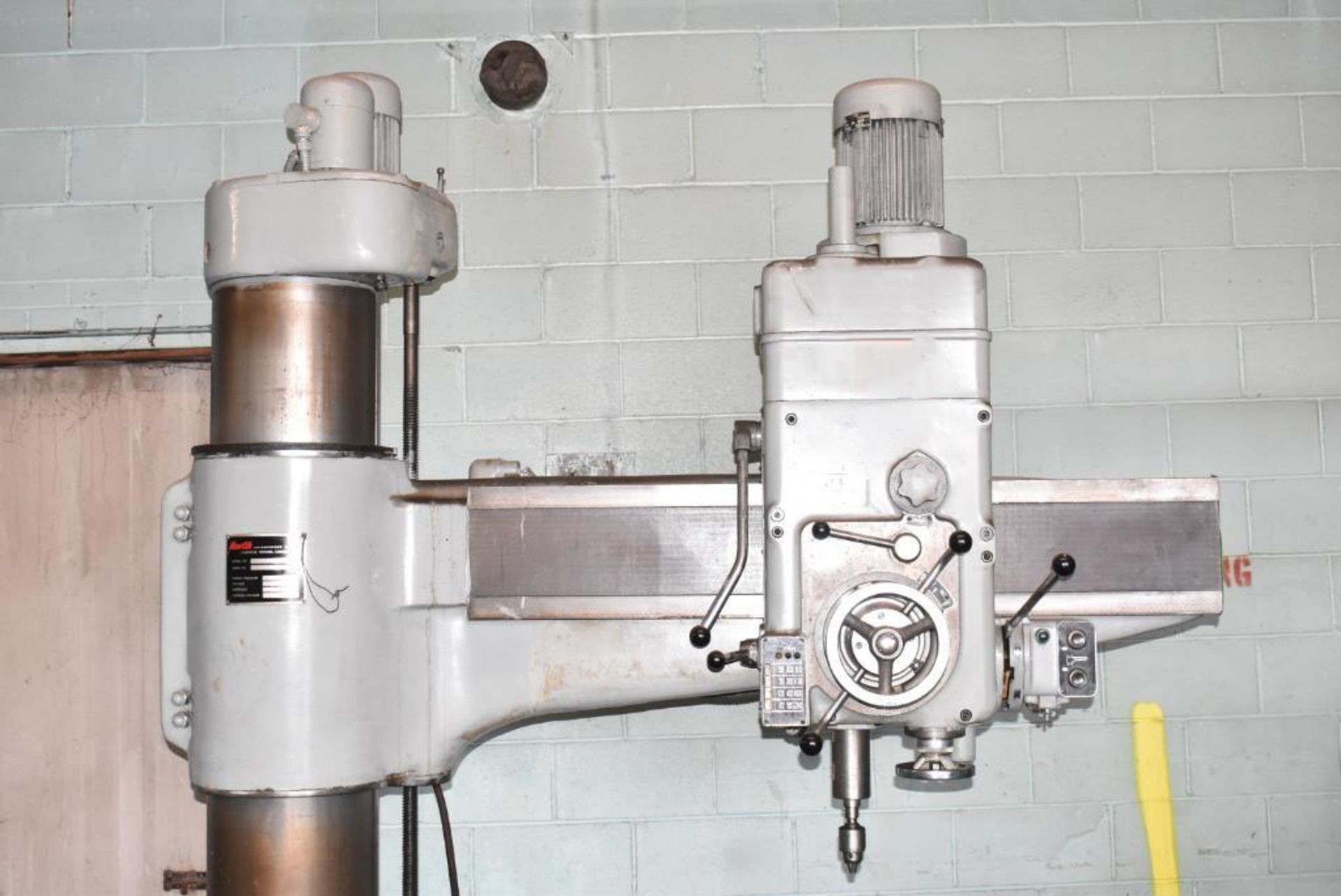

RADIAL ARM DRILL,MAKE HAVLIK,35 MM,ARM 5′

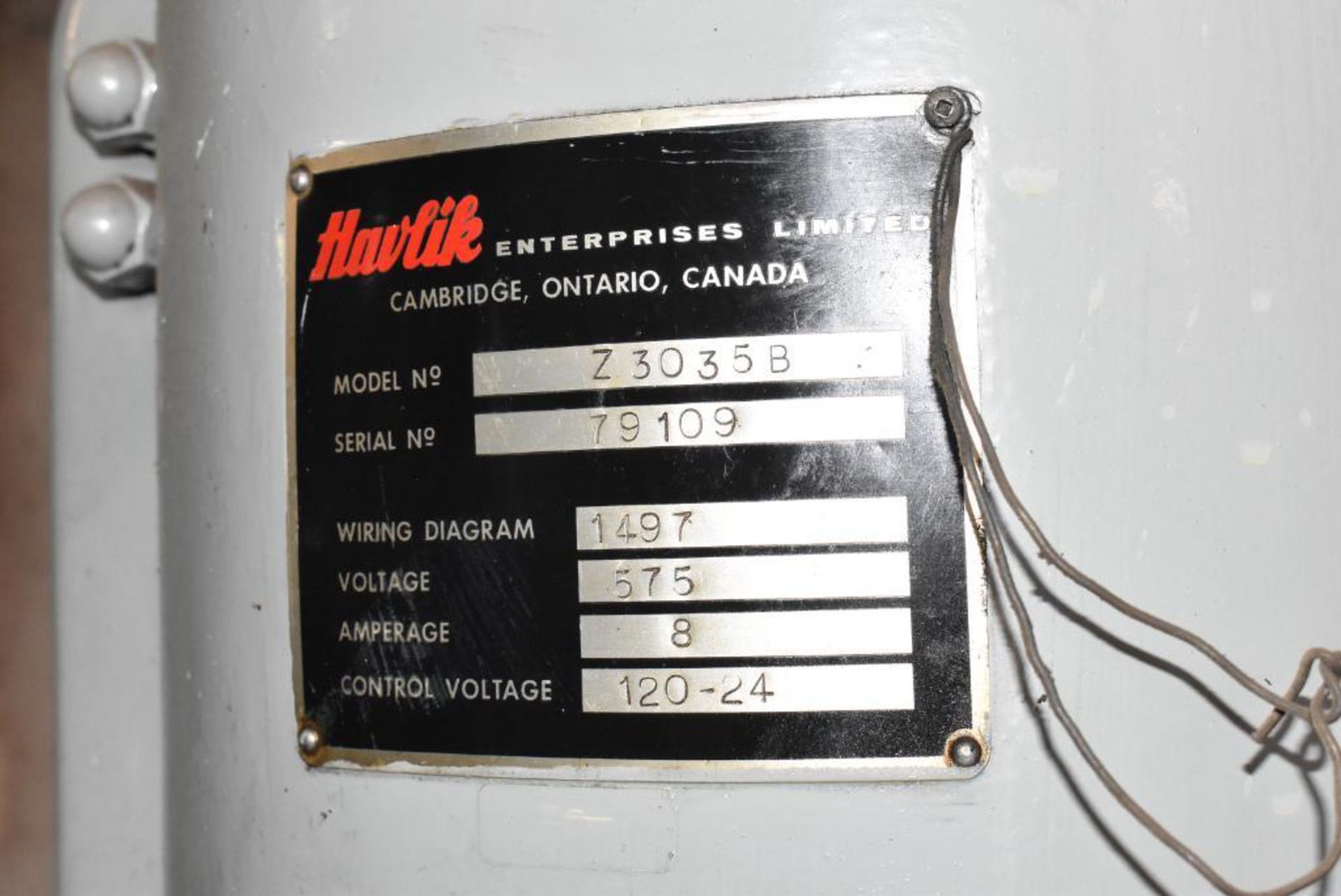

Make: Havlik Enterprises Ltd. (Canada)
Model: Z3035B
Type: 5′ Radial Arm Drill
Serial Number: 79109
SPECIFICATIONS
Max drilling diameter 35 mm
Distance from spindle nose to table surface 300 mm – 1000 mm
Distance from spindle axis to column surface 260 mm – 1200 mm
Spindle travel 200 mm
Arm Length 1524 mm
Spindle speed range (rpm) 75 rpm – 1220 rpm
